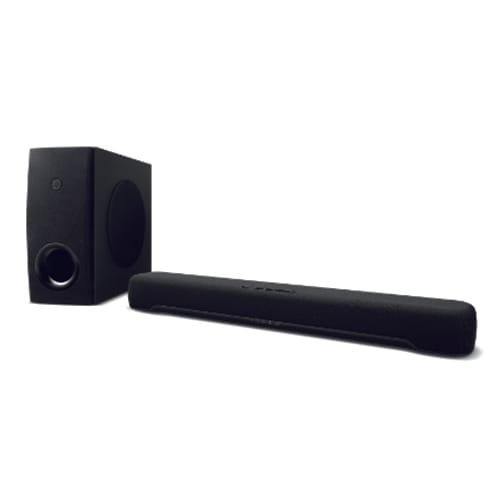

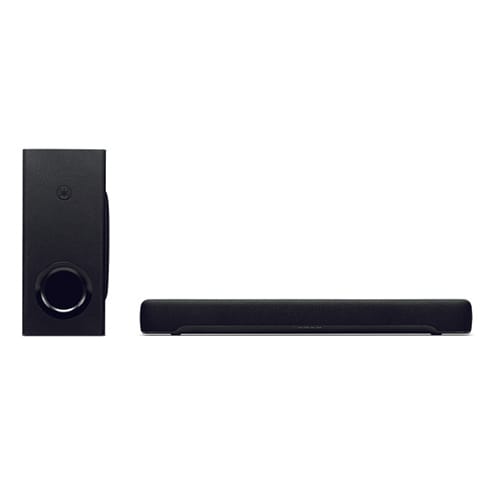

C30A – Compact Sound Bar and wireless subwoofer.
- • Compact center unit and subwoofer (CU: W600mm x H64mm x D94mm, SW: W335mm x H160mm x D364mm)
- • Connectivity: Bluetooth®, HDMI™ (ARC), digital optical, and analog audio
- • 4 sound modes: Stereo, Standard, 3D Movie, and Game.
- • Clear voice for more audible human voices
- • Dedicated app: Sound Bar Remote
Specifications
SR-C30A | |||
|---|---|---|---|
| General | Drivers | Center unit: Front L/R: 4.6 cm (1.8“) cone × 2, Subwoofer: 13cm (5-1/8”) | |
| Output Power | 90 W (Front L/R: 20 W × 2-ch, Subwoofer: 50 W) | ||
| Power Consumption | Center unit: 20V/2.1A (Rated), Subwoofer: 20 W | ||
| Standby Power Consumption | 0.3 W (HDMI control off, Bluetooth standby off), 0.5 W (HDMI control on, Bluetooth standby on) | ||
| Dimensions (W x H x D) | Center unit: 600 x 64 x 94 mm (23-5/8” x 2-1/2” x 3-3/4”), Subwoofer: 335 x 160 x 364 mm (13-1/4” x 6-1/4” x 14-3/8”) | ||
| Weight | Center unit: 1.3 kg (2.9 lbs), Subwoofer: 5.7 kg (12.6 lbs) | ||
| Input / Output | HDMI | 1 out (TV ARC) | |
| Digital Optical | 2 in | ||
| Subwoofer output | No | ||
| Analog Audio | 1 in | ||
| HDMI | 4K Pass-through | No | |
| eARC/ARC | ARC | ||
| 3D Pass-through | No | ||
| ARC | Yes | ||
| CEC | Yes | ||
| Auto Lip-Sync | No | ||
| Sound Technology | Surround Technology | Dolby Audio | |
| Surround Mode | Stereo, Standard, 3D Movie, Game | ||
| Compressed Music Enhancer | Yes | ||
| Bass Extension | Yes | ||
| Audio Formats | Dolby Digital | Yes | |
| Dolby Pro Logic II | Yes | ||
| DTS Digital Surround | No | ||
| File Format | – | ||
| Extensive Connection | Wireless Music Streaming | No | |
| Wi-Fi | No | ||
| AirPlay | No | ||
| Bluetooth Version/Profile | Version: Ver 5.0 / Profiles: A2DP / Codecs: SBC, AAC | ||
| Bluetooth Maximum Communication Range | Approx. 10 m; 33 ft (without obstructions) | ||
| Wireless Subwoofer | Yes | ||
| Connectivity | MusicCast Surround | No | |
| Other Features | App Control | Yes (Sound Bar Remote) | |
| Learning Function | No | ||
