B30A – Soundbar with Dolby Atmos®. Built-in subwoofer.
- • Dolby Atmos® which further enhances Yamaha’s immersive sound field creation
- • Tone control, adjust sounds to your own taste

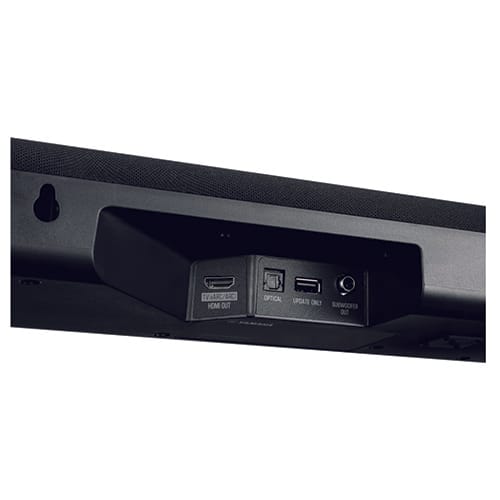

- • HDMI eARC, Bluetooth®, and optical connection
- • Clear Voice for enhanced dialogue quality
- • Bass Extension for enjoying greater bass response
- • Built-in subwoofer for realistic and richly textured bass
- • Remote controller and Sound Bar Remote app, for easier and further access to your Sound Bar
Specifications
SR-B30A | |||
|---|---|---|---|
| General | Drivers | Front L/R: 4.6 cm (1.8″) cone × 4, Tweeter: 2.5cm (1″) dome × 2, Built-in subwoofer: 7.5 cm (3″) cone × 2 | |
| Output Power | 120 W (Front L/R: 30 W × 2-ch, Built-in subwoofer: 60 W) | ||
| Power Consumption | 23 W | ||
| Standby Power Consumption | 0.3 W (HDMI control off, Bluetooth standby off), 0.6 W (HDMI control on, Bluetooth standby on) | ||
| Dimensions (W x H x D) | Installing the unit in front of a TV: 910 × 68 × 133 mm (35-7/8″ × 2-5/8″ × 5-1/4″), Mounting the unit on a wall with spacers: 910 × 66 × 139 mm (35-7/8″ × 2-5/8″ × 5-1/2″) | ||
| Weight | 3.9 kg (8.6 lbs) | ||
| Input / Output | HDMI | 1 out (eARC) | |
| Digital Optical | Yes | ||
| Subwoofer output | Yes | ||
| Analog Audio | No | ||
| HDMI | 4K Pass-through | No | |
| eARC/ARC | eARC/ARC | ||
| CEC | Yes | ||
| Auto Lip-Sync | No | ||
| Sound Technology | Surround Technology | Dolby Atmos | |
| Surround Mode | Stereo, Standard, Movie, Game | ||
| Compressed Music Enhancer | No | ||
| Bass Extension | Yes | ||
| Audio Formats | Dolby Digital | Yes | |
| Dolby Pro Logic II | No | ||
| DTS Digital Surround | No | ||
| File Format | – | ||
| Extensive Connection | Wireless Music Streaming | No | |
| Wi-Fi | No | ||
| AirPlay | No | ||
| Bluetooth Version/Profile | Version: Ver 5.1 / Profiles: A2DP / Codecs: SBC, AAC | ||
| Bluetooth Maximum Communication Range | Approx. 10 m ; 33ft (without obstructions) | ||
| Wireless Subwoofer | No | ||
| Connectivity | MusicCast Surround | No | |
| Other Features | App Control | Yes (Sound Bar Remote) | |
| Learning Function | No | ||
