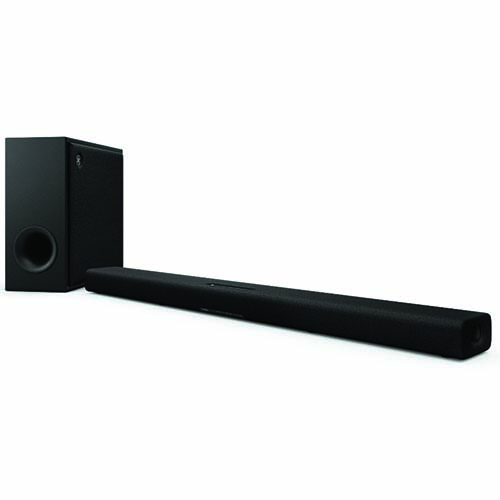

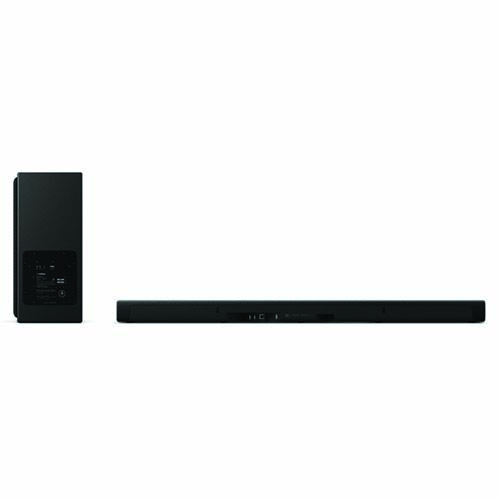

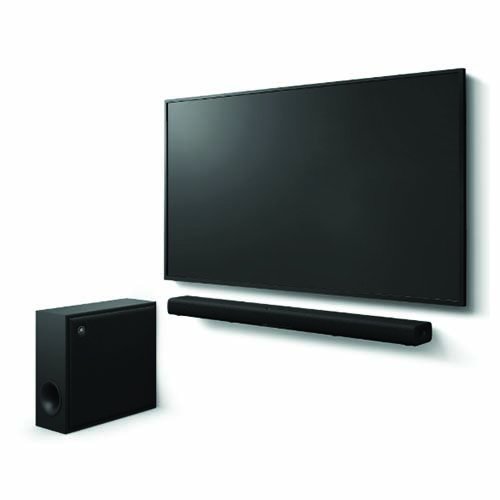

True X Soundbar with external subwoofer
- • True X Surround (Separately sold True X speakers are required to play contents with True X surround.)
- • Dolby Atmos®
- • Alexa Built-in
- • Spotify Connect, AirPlay 2, and Tidal Connect
- • HDMI eARC(out), HDMI in, Bluetooth®, and optical connection
- • Clear Voice for enhanced dialogue quality
- • Bass Extension for enjoying greater bass response
- • External subwoofer for realistic and richly textured bass
- • Remote controller and Sound Bar Controller app, for easier and detailed access to your soundbar
- • The True X Bar 50A can connect wirelessly via True X Surround to True X Speaker 1A* or the True X Speaker 3A*.
- • Sold separately.
SPECIFICATIONS
| TRUE X BAR 50A | ||
|---|---|---|
| General | Drivers | Front L/R: 4.6 × 6.6 cm (1-3/4 × 2-5/8″) cone × 2, Height L/R: 5.2 cm (2″) cone × 2, Built-in Subwoofer: 7.5 cm (3″) cone × 2, Wireless Subwoofer: 16 cm (6-1/4″) cone |
| Output Power | 280 W (Front L/R: 30 W × 2-ch, Height L/R: 30 W × 2-ch, Built-in subwoofer: 30 W × 2, Subwoofer: 100W ) | |
| Power Consumption | Center unit: 36 W, Subwoofer: 18 W | |
| Standby Power Consumption | 0.5 W (HDMI control off, Bluetooth® standby off), 2.0 W (HDMI control on, Bluetooth® standby off), Subwoofer: 2.0 W | |
| Dimensions (W x H x D) | Center unit: 1,015 × 63 × 112 mm (40″ × 2-1/2″ × 4-3/8″), Subwoofer: 187 × 407 × 409 mm (7-3/8” × 16” × 16-1/8”) | |
| Weight | Center unit: 3.9 kg (8.5 lbs), Subwoofer: 9.4 kg (20.7 lbs) | |

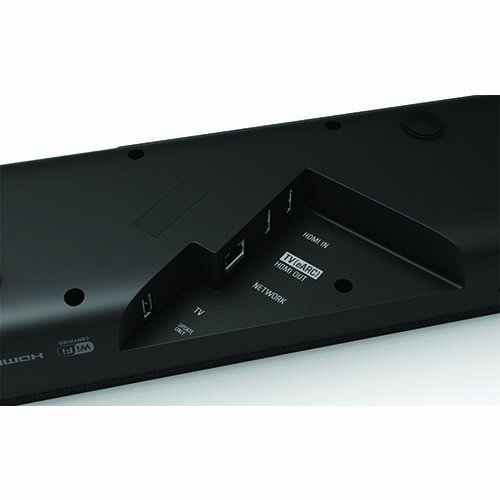

| Input / Output | HDMI | 1 in / 1 out (eARC) |
| Digital Optical | Yes | |
| Subwoofer output | No | |
| Analog Audio | No | |
| HDMI | 4K Pass-through | Yes |
| eARC/ARC | eARC/ARC | |
| CEC | Yes | |
| Auto Lip-Sync | max 500 msec | |
| Sound Technology | Surround Technology | Dolby Atmos |
| Surround Mode | Stereo, Standard, Movie, Game | |
| Compressed Music Enhancer | No | |
| Bass Extension | Yes | |
| Audio Formats | Dolby Digital | Yes |
| Dolby Pro Logic II | No | |
| DTS Digital Surround | No | |
| Extensive Connection | Wireless Music Streaming | Yes |
| Wi-Fi | Yes | |
| AirPlay | AirPlay 2 | |
| Bluetooth Version/Profile | Version: Ver 5.0 / Profiles: A2DP / Codecs: SBC, AAC | |
| Bluetooth Maximum Communication Range | Approx. 10 m ; 33 ft (without obstructions) | |
| Wireless Subwoofer | Yes | |
| Connectivity | MusicCast Surround | No |
| Other Features | App Control | Yes (Sound Bar Controller) |
| True X Surround | Yes | |
| Learning Function | No | |
