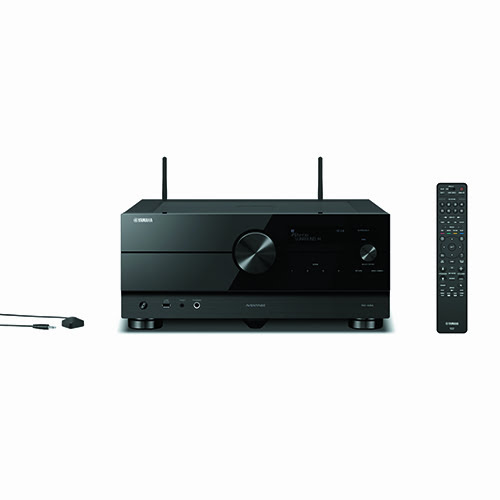

A8A – 11.2 ch Ultimate quality AVENTAGE with Surround:AI™, HDMI™ 7-in/3-out, the latest QCS407.
- • 11.2 channel powerful surround sound with Zone2/3/4
- • Wi-Fi, Bluetooth®, AirPlay 2, Spotify Connect and MusicCast multi-room audio
- • AURO-3D via FW update
- • Dolby Atmos® and DTS:X® with CINEMA DSP HD3
- • SURROUND:AI automatically optimizes the surround effect in real time
- • HDMI™ 7 in/3 out, 8K60Hz, 4K120Hz, HDR10+ via FW update
- • Dedicated gaming function(ALLM,VRR,QMS,QFT) via FW update
- • Dual ESS SABRE ES9026PRO Ultra DAC for the ultimate high performance conversion
- • YPAO™-R.S.C. with 3D, multi-point measurement, precision EQ and low frequency mode
- • Voice control with Alexa and Google Assistant devices. *Availability varies by region
| SPECS | Click here for dimension drawing | ||
|---|---|---|---|
| Amplifier Section | Channel | 11.2 | |
| Rated Output Power (1kHz, 1ch driven) | 185 W (8 ohms, 0.9% THD) | ||
| Rated Output Power (20Hz-20kHz, 2ch driven) | 150 W (8 ohms, 0.06% THD) | ||
| Maximum Effective Output Power (1kHz, 1ch driven) | 220 W (8 ohms, 10% THD) | ||
| High Slew Rate Amplifier | Yes | ||
| Surround Sound Processing | Surround:AI | Yes | |
| CINEMA DSP | Yes (HD3) | ||
| DSP Programs | 24 | ||
| Dialog Level Adjustment | Yes | ||
| Virtual Presence Speaker | Yes | ||
| Virtual Surround Back Speaker | Yes | ||
| Dialogue Lift | Yes | ||
| SILENT CINEMA / Virtual CINEMA DSP | Yes | ||
| Dolby Atmos | Yes | ||
| Dolby Atmos Height Virturalizer | Yes | ||
| Dolby TrueHD | Yes | ||
| Dolby Digital Plus | Yes | ||
| Dolby Surround | Yes | ||
| DTS:X | Yes | ||
| DTS-HD Master Audio | Yes | ||
| Auro 3D | Yes (via firmware update) | ||
| Audio Features | File Format | MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz | |
| Pure Direct | Yes | ||
| Compressed Music Enhancer | Yes | ||
| High-resolution Music Enhancer | Yes | ||
| YPAO multi-point measurement | Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement | ||
| YPAO Volume | Yes | ||
| Adaptive DRC (Dynamic Range Control) | Yes | ||
| Initial Volume & Maximum Volume Setting | Yes | ||
| A.R.T. Wedge | Yes | ||
| Bi-amp capability | Yes | ||
| Audio Delay | Yes (0-500 ms) | ||
| DA Converter | 384 kHz / 32-bit ESS Hyperstream DAC ES9026PRO x2 | ||
| Video Features | HDMI eARC | Yes | |
| HDMI Audio Return Channel | Yes | ||
| HDMI Pass-through | 8K60AB, 4K120AB (via future update) | ||
| HDMI Up-scaling | Yes, up to 8K (via firmware update) | ||
| HDMI Up-conversion | Yes (Analog to HDMI) | ||
| Dolby Vision | Yes | ||
| HDR 10+ | Yes (via firmware update) | ||
| VRR/ALLM/QMS/QFT | Yes (via firmware update) | ||
| Video adjustment | Yes | ||
| Connectivity | MusicCast Surround | Yes | |
| AirPlay 2 | Yes | ||
| XLR Terminal | Yes | ||
| Extensive Connection | HDMI Input/Output | 7 / 3 (HDMI2.1 / HDCP2.3) | |
| HDMI CEC | Yes | ||
| USB Input | Yes | ||
| Network Port | Yes | ||
| Wi-Fi | Yes (2.4 / 5 GHz) | ||
| Bluetooth | Yes (SBC / AAC) | ||
| Front AV Input | USB | ||
| Digital Audio Input/Output: Optical | 3 / 0 | ||
| Digital Audio Input/Output: Coaxial | 2 / 0 | ||
| Analog Audio Input/Output | 6 / 0 | ||
| Phono Input | Yes | ||
| Component Video Input/Output | 1 / 0 | ||
| Composite Video Input/Output | 2 / 0 | ||
| Preout | 11.2-ch | ||
| Headphone Output | 1 | ||
| Tuner Section | FM/AM Tuner | Yes (Availability varies by region.) | |
| DAB Tuner | Yes (Availability varies by region.) | ||
| User Interface | On-screen display | Graphical User Interface | |
| SCENE | SCENE PLUS (8 sets) | ||
| App Control | Yes (iPhone / iPad / Android phone / tablet) | ||
| Web Browser Control | Yes | ||
| Remote Control Unit | Yes | ||
| Zone Control | Zone 2 Audio Output | Preout / HDMI | |
| Zone 3 Audio Output | Preout | ||
| Zone 4 Audio Output | HDMI | ||
| Powered Zone | Zone 2 / 3 | ||
| Zone Video Output | HDMI | ||
| Zone B Output | HDMI | ||
| Zone GUI | Yes | ||
| RS-232C Interface | N/A | ||
| +12V Trigger Output | 2 | ||
| Remote (IR) Input/Output | 1 / 1 | ||
| Party Mode | Yes | ||
| General | Standby Power Consumption (IR only) | <0.4 W | |
| Auto Power Standby | Yes | ||
| ECO mode | Yes | ||
| Dimensions (W x H x D) | 435 W x 192 H x 477 D mm (with antenna up:435 W x 271 H x 477 D mm);17-1/8″W x 7-1/2″H x 18-3/4″D (with antenna up:17-1/8″W x 10-5/8″H x 18-3/4″D) | ||
| Weight | 21.4 kg; 47.2 lbs. |
