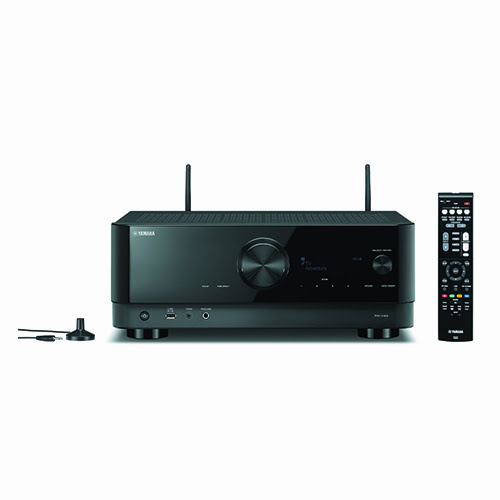

5.2 ch AV receiver with CINEMA DSP 3D, HDMI 4-in/1-out, wireless surround
- • 5.2 Channel powerful surround sound
- • Wi-Fi, Bluetooth®, AirPlay 2, Spotify Connect and MusicCast multi-room audio
- • HDMI™ 4 in/1 out
- • Dedicated gaming function (ALLM, VRR)
- • MusicCast Surround capable – add MusicCast 20 or MusicCast 50 speakers to create wireless surround sound
- • HD Audio with CINEMA DSP 3D
- • YPAO™ sound optimization
| SPECS | |||
|---|---|---|---|
| Amplifier Section | Channel | 5.2 | |
| Rated Output Power (1kHz, 1ch driven) | 115 W (6 ohms, 0.9% THD) | ||
| Rated Output Power (20Hz-20kHz, 2ch driven) | 80 W (6 ohms, 0.06% THD) | ||
| Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) | 145 W (6 ohms, 10% THD) | ||
| High Slew Rate Amplifier | Yes | ||
| Surround Sound Processing | Surround:AI | N/A | |
| CINEMA DSP | Yes | ||
| DSP Programs | 17 | ||
| Dialog Level Adjustment | Yes | ||
| Virtual Presence Speaker | Yes | ||
| Virtual Surround Back Speaker | N/A | ||
| Dialogue Lift | N/A | ||
| SILENT CINEMA / Virtual CINEMA DSP | Yes | ||
| Dolby Atmos | N/A | ||
| Dolby Atmos Height Virturalizer | N/A | ||
| Dolby TrueHD | Yes | ||
| Dolby Digital Plus | Yes | ||
| Dolby Surround | N/A | ||
| DTS:X | N/A | ||
| DTS-HD Master Audio | Yes | ||
| Auro 3D | N/A | ||
| Audio Features | File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz | |
| Pure Direct | Yes | ||
| Compressed Music Enhancer | Yes | ||
| High-resolution Music Enhancer | N/A | ||
| YPAO multi-point measurement | N/A | ||
| YPAO Volume | N/A | ||
| Adaptive DRC (Dynamic Range Control) | Yes | ||
| Initial Volume & Maximum Volume Setting | Yes | ||
| A.R.T. Wedge | N/A | ||
| Bi-amp capability | Yes | ||
| Audio Delay | Yes (0-500 ms) | ||
| DA Converter | 384 kHz / 32-bit BB PCM5101A | ||
| Video Features | HDMI eARC | Yes | |
| HDMI Audio Return Channel | Yes | ||
| HDMI Pass-through | 8K / 60 Hz, 4K / 120 Hz (via firmware update) | ||
| HDMI Up-scaling | Yes up to 4K | ||
| HDMI Up-conversion | N/A | ||
| HDR 10+ | Yes (via firmware update) | ||
| VRR/ALLM/QMS/QFT | Yes (via firmware update) | ||
| Video adjustment | N/A | ||
| Connectivity | MusicCast Surround | Yes | |
| XLR Terminal | N/A | ||

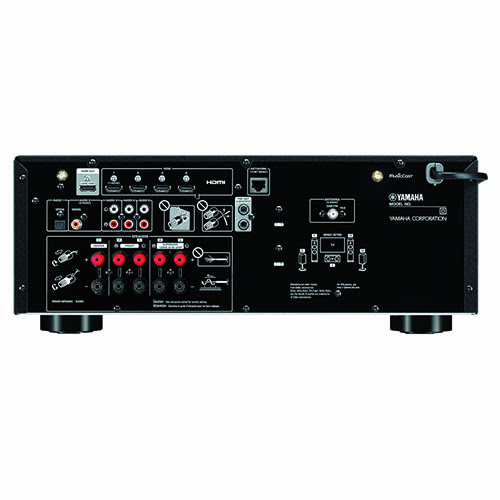

| Extensive Connection | HDMI Input/Output | 4 / 1 | |
| HDMI CEC | Yes | ||
| USB Input | Yes | ||
| Network Port | Yes | ||
| Wi-Fi | Yes (2.4 / 5 GHz) | ||
| AirPlay | Yes | ||
| Bluetooth | Yes (SBC / AAC) | ||
| Front AV Input | USB | ||
| Digital Audio Input/Output: Optical | 1 / 0 | ||
| Digital Audio Input/Output: Coaxial | 1 / 0 | ||
| Analog Audio Input/Output | 3 / 0 | ||
| Phono Input | N/A | ||
| Component Video Input/Output | N/A | ||
| Composite Video Input/Output | N/A | ||
| Preout | 0.2-ch | ||
| Headphone Output | 1 | ||
| Tuner Section | FM/AM Tuner | Yes (Availability varies by region.) | |
| DAB Tuner | Yes (Availability varies by region.) | ||
| User Interface | On-screen display | Graphical User Interface | |
| SCENE | Yes (4 sets) | ||
| App Control | Yes (iPhone / iPad / Android phone / tablet) | ||
| Web Browser Control | N/A | ||
| Remote Control Unit | Yes | ||
| Zone Control | Zone 2 Audio Output | N/A | |
| Zone 3 Audio Output | N/A | ||
| Zone 4 Audio Output | N/A | ||
| Powered Zone | N/A | ||
| Zone Video Output | N/A | ||
| Zone B Output | N/A | ||
| Zone GUI | N/A | ||
| RS-232C Interface | N/A | ||
| +12V Trigger Output | N/A | ||
| Remote (IR) Input/Output | N/A | ||
| Party Mode | N/A | ||
| General | Standby Power Consumption (IR only) | 0.1 W | |
| Auto Power Standby | Yes | ||
| ECO mode | Yes | ||
| Dimensions (W x H x D) | 435 W x 171H x 377D mm (with antenna up:435 W x 245 H x 377 D mm);17-1/8″W x 6-3/4″H x 14-7/8″D (with antenna up:17-1/8″W x 9-5/8″H x 14-7/8″D) | ||
| Weight | 8.8 kg; 19.4 lbs. | ||
