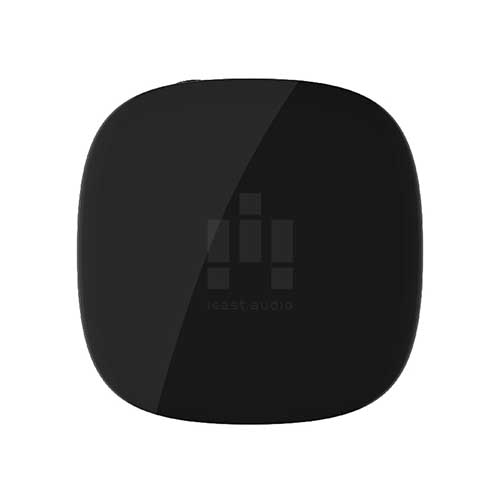

OLIOSTREAM | Streaming HiFi audio receiver

EAST oliostream is an innovative Wi-Fi&Bluetooth Hi-Fi Streaming audio receiver. which is able to turn your current speakers, soundbars and home theatre speakers into a Wireless Multi-Room Sound System by connecting to your home WiFi Network.

We provides iOS and Android App offers the easiest and best user-friendly experience for music streaming and multi-room sound system set up.When you add another IEAST receiver to your network, you can establish a connection between the different devices in Wi-Fi. You can play your music in all the rooms simultaneously or a different music in each room, as you wish.

If you don’t have a WiFi network, you can use Bluetooth to connect to your audio device.

Product features

- • Support Airplay2
- • Support WWA(work with alexa）
- • Support Spotify Connect/TIDAL Connect/Qplay/hi-rescloud connect(Support HD / Lossless audio)
- • Support 2.4G+5G (Wi-Fi)/IEEE 802.11 a/b/g/n/ac Standard
- • Support Bluetooth 5.2（AAC) Support analog and optical digital audio output
- • Support dynamic sampling rate output, up to 192kHz/24bit decoding and output.

The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by UYESEE inc, is under license. Other trademarks and trade names are those of thier respective owners.

IEAST®, the IEAST logotype, the ‘i’ symbol, and oliostream® are all registered trademarks of UYESEE, China.

All other products and services mentioned may be trademarks or service marks of their respective owners.

The information contained in this document is subject to change without notice.

Specifications

Type	Wireless streaming audio receiver
Inputs	WiFi, Bluetooth V5.2

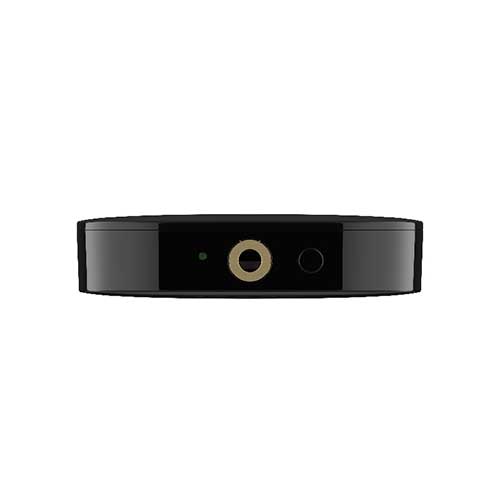

Outputs	3.5 Stereo and optical two-in-one output
Wireless network compatibility	802.11 b/g/n/ac/ac, 2.4GHz/5 GHz
Supported audio formats	APE、FLAC、MP3、WAV、AAC、AAC+、WMA、ALAC、AIFF
Streaming Protocol	DLNA,Airplay2,Spotify connect, Qplay, TIDAL connect
DAC	PCM5121
Signal-to-noise ratio	108dB

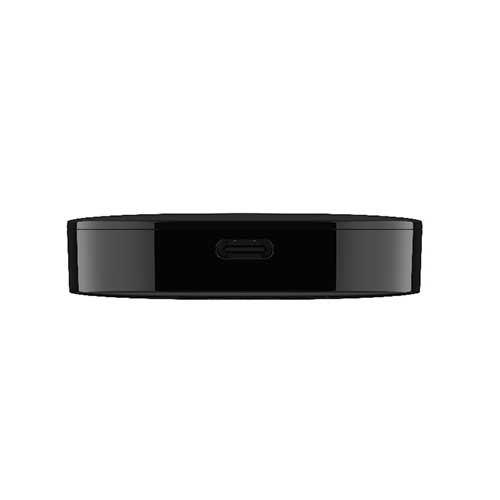

Power Supply	DC5V 1A with Type-C
Dimensions HxWxD	54mm x 54mm x 13.5mm
Accessories	USB-C power cord/3.5 audio cable
SKU	OLIO01BK
EAN	6970504260153

What’s in the package

oliostream 1 x 1

USB C Cable x 1

Power Adaptorx1(*)

AUX Cable x 1

Quick Start Guide x 1

(*):Power adaptor is optional, depending on the region and local seller’s policy.

Interface

Multi-function button:

- • Short press to switch mode, WIFI/BT,
- • Wifi mode, long press 3s to enter Wi-Fi pairing mode,
- • BT mode, long press 3s to enter BT pairing mode.

Indicator light:

Wi-Fi mode: Green

• Router not connected: flashing green.

• Wi-Fi network configuration mode: flashing green.

• Successfully connected to the router: steady green.

BT mode: Blue

• BT pairing mode: blue flashing.

• BT connected device: steady blue.

Restore factory settings: green and blue display alternately.

Wiring Connections

Network

- • Your network must have a internet connection, as the device is designed to utilise free, online software updates.
- • IEAST oliostream communicate via a 2.4GHz /5GHz home network with support for 802.11 b/g/n/ac/wireless technology.

Router

- • High-speed DSL/cable modem, or fibre-to- the-home broadband connection for proper playback of internet-based music services.
- • Different routers provide different levels of performance. Please use a good wireless router to achieve the best possible perfor- mance.

iOS&Andriod Smart Phone/Pad

- • Turn on the wifi mode of the device and connect to your network.
- • Turn off the vpn of the device. • Download and install the IEAST app.

Will add the device to the network

1.Power on the device

2.Launch the IEAST app and follow the instructions.

3.Add Device

4.Important tips for device connection

The device is connected to the network via BLE

- • Open IEAST APP, for Android device, the system will ask for permission to use GPS data & File storage, please click accept to continue. This GPS permission is setup by Google for BLE usage, once setup is finish you can go to system settings and disable it, file storage permission is to let IEAST access your audio files store in your mobile.
- • Once connection is finished, it will automatically check for new updates, Please follow the prompts to update to the latest firmware.

The device is connected to the network via Direct connection

If BLE cannot find your device, APP will prompt you to setup by WiFi.

Please click “alternate way to setup” and do the following:

- • Allow to open the GPS of phone & pad.
- • Go to your phone & pad WiFi settings and search for IEAST oliostream_xxxx WiFi and connect.
- • Go back to IEAST APP and select the router SSID you want your IEAST device connect to (enter password if required) and select continue.

Note: that the operating system of the phone or pad is Android 5.0 or above, the app will ask you if you are allowed to use the network of the IEAST audio system, please choose yes, if not, you may not able to set up successfully. It may also ask you to authorize other things, please choose yes or it may affect your use.

If you still encounter problems with the device connection, please contact us through our support. (support.ieast.audio)

Pair with Bluetooth device

Bluetooth mode, please swtich to bluetooth via app or by key, then find bluetooth device IEAST oliostream XXXX from your phone bluetooth setting and pair it.

APP to switch BT mode

Note: The device supports the source mode memory function, which will record the source mode before the last shutdown. The source mode before the last shutdown will be saved when the machine is turned on next time.

If you still encounter problems with the device connection, please contact us through our support. (support.ieast.audio)

IEAST App Overview

① Music services and sources
