Features:

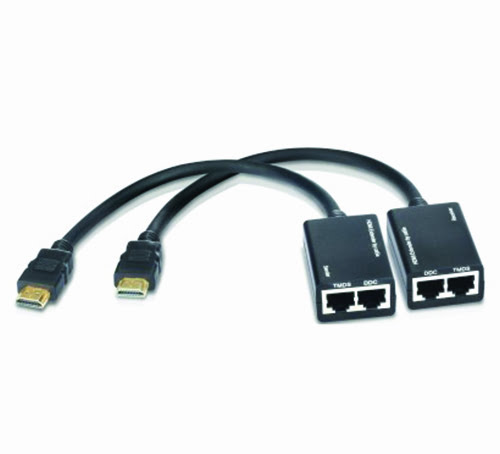

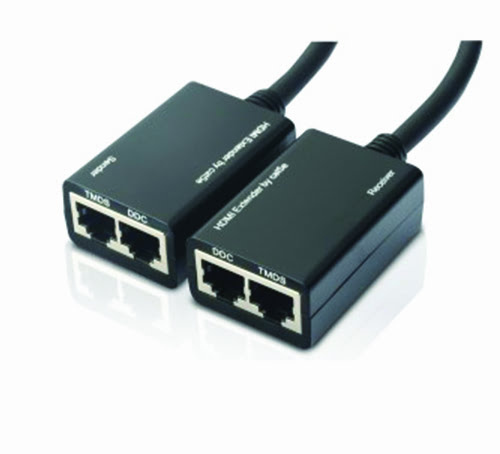

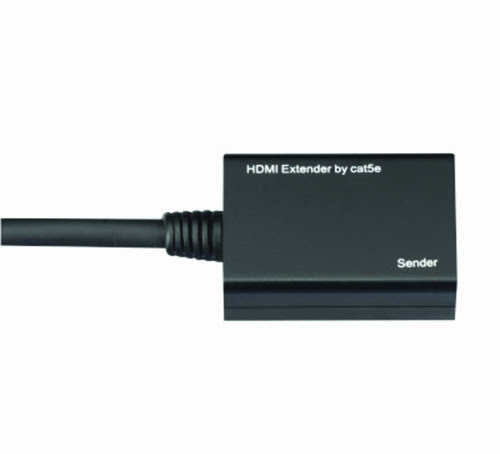

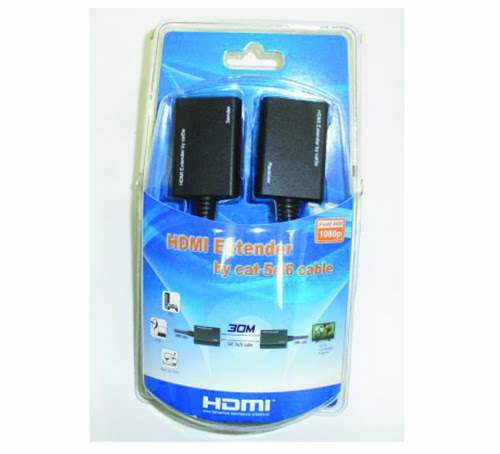

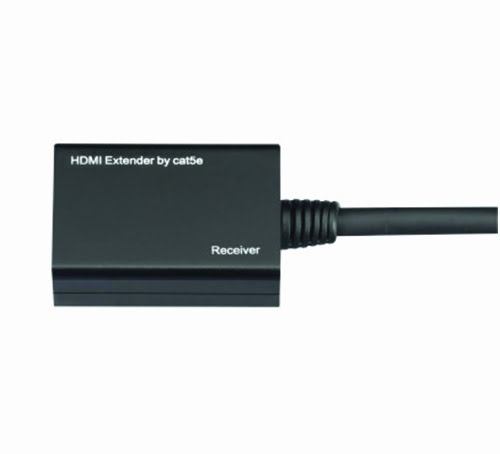

- • HDMI Extender by CAT5E or CAT6
- • Transmission distance can be up to 30 meters for 1080p using UTP cable with cross stand inside
- one pair as a full functional module, plug & play
- • CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
- • Follow the standard of IEEE-568B.
- • Compact size.
- • Supports highest video resolution 1080p.
- • Supports 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
- • Supports 8bit per channel (24bit all channel) deep color.
- • HDCP pass-through.
- • Supports uncompressed audio such as LPCM
- • Supports compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby
- True HD)
- • Support 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up
- to 165MHz
Specifications
| Transmission Distance | 30M for 1080p |
| Signal Inputs/Output | |
| Maximum Signal Link Range | 1920X1080p |
| Output Video | HDMI |
| Operating Frequency | |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 1.65Gbps/165MHz |
| Resolutions(HDTV) | |
| Interlaced(50&60Hz) | 480i,576i,1080i |
| Progressive(50&60Hz) | 480p,576p,720p,1080p |
| Power Requirement | |
| External Power Supply | 5V DC@2A (optional) |
