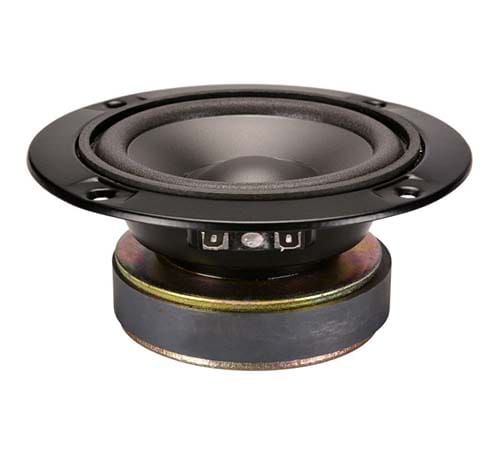

GM-85/8 Heavy-Duty 5-1/4″ Sealed Back Midrange 8 Ohm
Sealed back midrange eliminates need for separate midrange enclosure. Features poly-mica cone, treated foam surround, and aluminum voice coil for higher power handling.
Key Features
- • Cosmetic frame for a clean look without flush mounting
- • 1″ aluminum voice coil improves power handling
- • Sealed back design eliminates the need for a sub-enclosure
- • Poly-mica cone with foam surround delivers accurate response
| Product Details | |
|---|---|
| Brand | Goldwood |
| Model | GM-85/8 |
| Part Number | 280-115 |
| UPC | 643420300048 |
| Unit of Measure | Each |
| Weight | 1.8 |
| Product Specifications | |
|---|---|
| Nominal Diameter | 5″ |
| Power Handling (RMS) | 60 Watts |
| Power Handling (MAX) | 120 Watts |
| Impedance | 8Ω |
| Frequency Response | 500 to 15,000Hz |
| Sensitivity | 96dB 2.83V/1m |
| Voice Coil Diameter | 1″ |
| Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 470Hz |
| Materials of Construction | |
|---|---|
| Cone Material | Poly |
| Surround Material | Foam |
| Voice Coil Wire Material | Aluminum |
| Magnet Material | Ferrite |
| Mounting Information | |
|---|---|
| Overall Outside Diameter | 5.03125″ |
| Baffle Cutout Diameter | 4.125″ |
| Depth | 2.5″ |
| # Mounting Holes | 4 |
