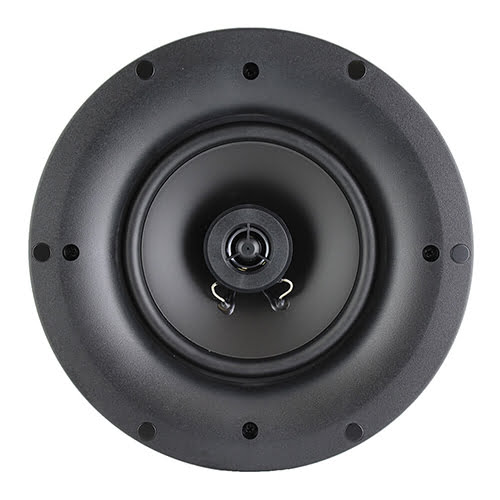

Flangeless 6.5” 70V/100V Commercial In-Ceiling Speaker
These new commercial in-ceiling speakers are designed to look as good as they sound, with a modern, no-edge design and a sturdy, dual-coated steel grill that can be painted to match any ceiling color. Visitors to the venue, whether it’s a church, restaurant, boardroom, or classroom, will barely notice the speakers —but they will appreciate the crystal clear sound.
| Key Features: | • Modern No Edge 2-Way In-Ceiling Design • 70V/100V Transformer for Commercial Applications • Tap Settings – 100V: 8Ω, 18W, 9W, 4.5W – 70V: 8Ω, 18W, 9W, 4.5W, 2.25W • Dual Coated (Zinc and Powder) Steel Grill firmly attached with Neodymium Magnets • Extra Wide Threaded Screws for Quick Dog Leg Fastening • Large Push Terminals • Removable Scrim Cloth |
|---|---|
| Mechanical Specifications: | • Baffle Diameter: 9.25″ (235mm) • Mounting Depth: 3.5″ (89mm) • Cut Out Dimensions: 8 .25″ (210mm) • Pre-Construction: Use Vanguard PCBC-6 |
| Acoustic Specifications: | • 6.5” (195.1mm) Polypropylene Woofer • 0.5” (12.7mm) PEI Tweeter • 5/70 WPC Power Handling • 87dB • Impedance 8Ω/100V/70V • Frequency Response 52Hz – 20kHz |
