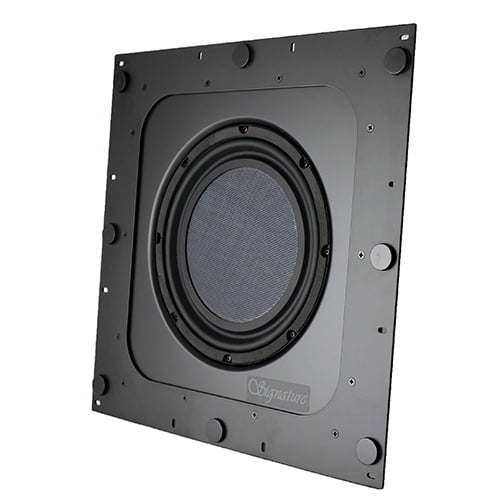

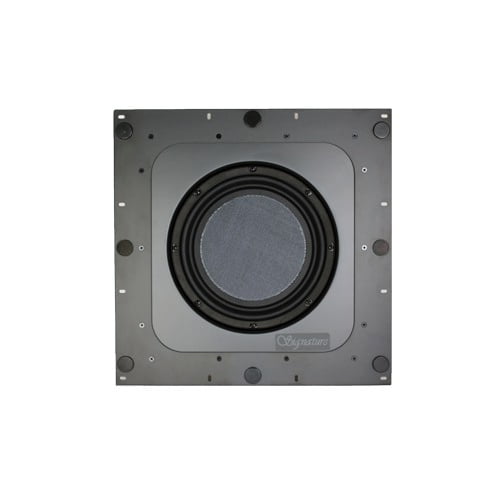

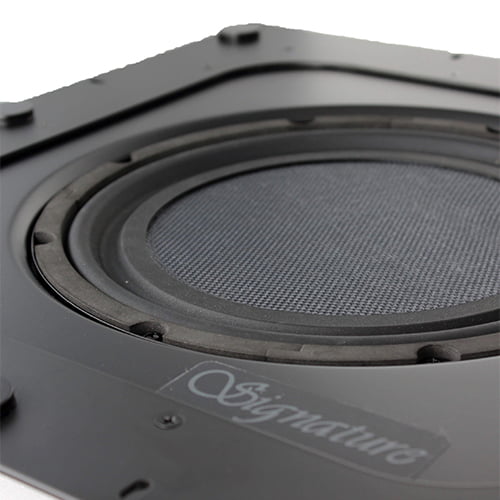

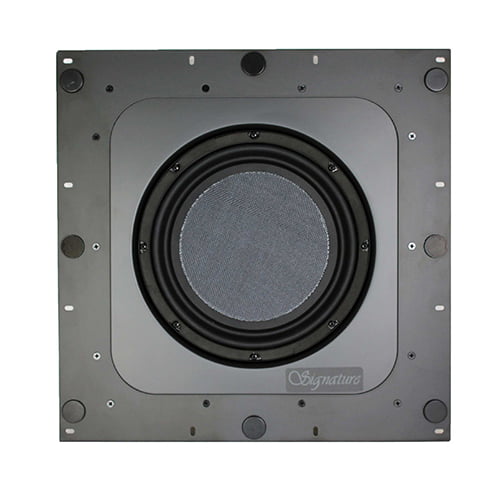

TDG’s Signature Series IWS-10 10″ In-Wall Subwoofer is the ultimate in-wall loudspeaker system designed specifically for a dedicated home theater installation. With heavy duty drivers, Signature Series is ready to deliver a thrilling and dynamic performance for any Hollywood blockbuster movie soundtrack. Engineered specifically for a high performance dedicated home theater environment, TDG not only created a line of speakers and subwoofers to be mounted in the wall but also created a line that doesn’t even remotely resemble the typical in-wall architectural loudspeaker. The Signature Series is a unique new product that boldly goes where the typical in-ceiling or in-wall speaker feared to tread – a reference grade, maximum performance, professionally designed, dedicated home theater.
| Key Features: | • In-Wall Mounted High-Performance Dedicated Home Theater Subwoofer • One-Piece Steel Frame Construction • Fully Magnetic Paintable Metal Grill (factory finish: white) • Ideal for use with Skybar System • LIFETIME WARRANTY |
|---|---|
| Mechanical Specifications: | • Ferrite Outer Magnetic Structure • Ultra High-Grade MDF Baffle • Overall Dimensions: 17.2” H x 17.2” W x 3.5” D (436.8mm x 436.8mm x 88mm) • Cut-Out Dimensions: 14.4” H x 14.4”W (365mm x 365mm) • Mounting Depth: 3.5″ (89mm) • Weight: 8.8 lbs (4 kg) |
| Acoustic Specifications: | • 10” (254mm) Aluminum Subwoofer • Frequency Response 35Hz – 200Hz • Efficiency 89dB • Impedance 4-ohm load |
