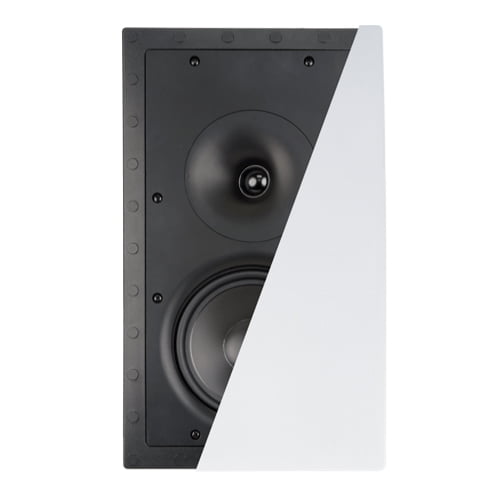

6-1/2″ 2-way In-Wall Loudspeaker with Rotating Waveguide/Frameless
DESCRIPTION
| Premium Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting soft dome tweeters. The grille may be painted to match mounting surface. The innovative cross-axis rotating waveguide on the SE-W602LCRSf allows the tweeter to operate a full octave lower than conventional dome tweeters while simultaneously reaching more than a half octave higher in frequency. Therefore, the tweeter is able to cover more of the critical voice range, create a much smoother off-axis listening experience, and eliminate the midrange-hole that is commonly experienced with conventional designs. The SE-W602LCRSf is a 6-1/2″ round 2-way In-Wall Loudspeaker with Roatating Waveguide, sold individually. |
SPECIFICATIONS
| Model Number: | SE-W602LCRSf |
| Frequency Response: | 65Hz – 20kHz ± 3 dB |
| Power Handling: | 45 watts nom. 90 max. |
| Sensitivity: | 86dB 2.83 V / 1 meter |
| Tweeter: | 1″ pivoting silk dome tweeter |
| Frameless Grille: | Magnetically Attached, Micro-Perforated – MG-LCRSf |
| Impedance: | 8 ohms nominal |
| Pre-construction Bracket: | Pre-construction bracket: RIB-LCR |
FEATURES
 Polypropylene woofer with butyl rubber surrounds |
| Innovative tweeter-mounted rotating waveguide with superlative off-axis performance |
| Industry leading superior clamp-ring mounting system |
| Magnetic, frameless, micro-perforated, vibration-free grille |
| High temperature Polyimide voice coils |
| Orient vertically or horizontally |
| Sold and shipped individually |
 |  |  |
 |
DIMENSIONS & WEIGHTS
| Overall Dimensions: | 9″ W x 15-3/4″ H |
| Cut-out Dimensions: | 7-7/8″ x 14-7/16″ x 3-5/8″ Deep |
