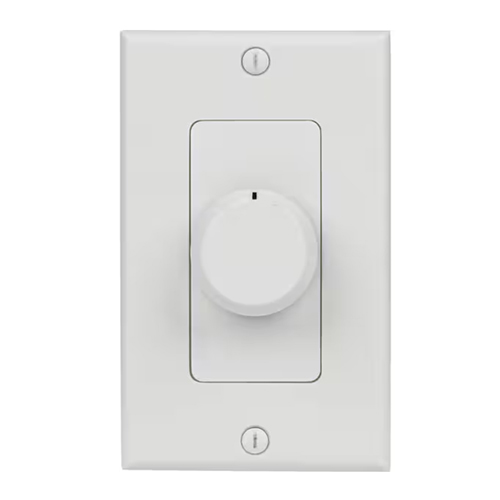

The VC70-100R Impedance Matching Rotary 100W Volume Control gives you 10 indented attenuation steps for use with any 70v speakers. High-quality components ensure no signal quality loss while attenuating. A broad frequency response retains a tight low-end response and crisp highs. Phoenix-type connectors accept up to 16 AWG to simplify the installation process.
Key Features
- • 10 indented attenuation steps from no signal to full signal with no signal quality loss
- • Impedance matching design for use with any 70v speakers
- • Fits into most deep single gang electrical junction boxes

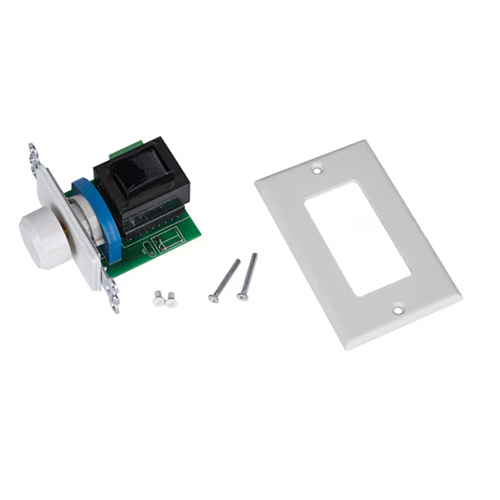

- • Includes matching white wall plate
Specifications
- • Type: Rotary Matching Impedance
- • Power Handling: 100w
- • Speaker Compatibility: 70v
- • Attenuation Steps: 10 (step 1 is no signal, steps 2-7 at 3dB each, step 8-9 at 6dB each, step 10 is full signal.)
- • Frequency Response: 20hz – 20kHz
- • Input / Output Connections: 16AWG Phoenix-type connectors
- • Size: Standard Single Gang
- • Dimensions: 1-3/4″ x 4″ x 3-1/2″
| Product Details | |
|---|---|
| Model | VC70-100R |
| Part Number | 300-559 |
| UPC | 848864066981 |
| Unit of Measure | Each |
| Weight | 0.75 |
