• • Max. Load: 11 lbs / 5 kg
• • Swivel Left/Right: 180 degrees
• • Vertical Tilt: Yes, +/- 20 degrees
• • Distance From Wall (to back of speaker): 8.5cm / 3.35 inches
• • Width of Wall Plate: 5.08 cm / 2.0 inches
• • Height of Wall Plate: 9.0 cm / 3.54 inches
• • Double Keyhole Adapter Details:
  • • Width: 8.0 cm / 3.15 inches
  • • Height: 4.0 cm / 1.57 inches
  • • Distance Between Screw Holes (center to center): 6.0cm / 2.36 inches
  • • Screw Hole Dimensions (each):
    • • Width: 0.6cm / 0.24 inches
    • • Length: 1.1cm / 0.43 inches
• • Single Keyhole Adapter Details:
  • • Width: 4.0 cm / 1.57 inches
  • • Height: 4.0 cm / 1.57 inches
  • • Diameter of screw hole: 0.6cm / 0.24 inches
• • Quantity/Package: 1 Pair (2 mounts)
• • Mounting Hardware: Included

PACKAGE CONTENTS:

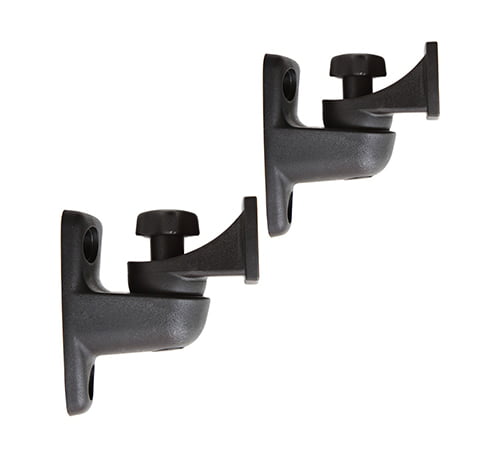

• • Two (1 Pair) CA017 Universal Ball-Joint Speaker Mounts
• • Assembly Manual

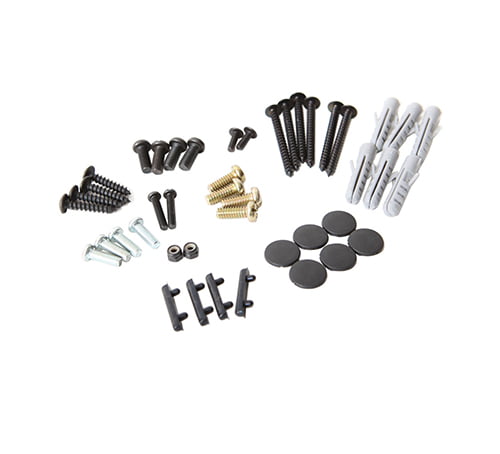

• • Assembly Hardware
