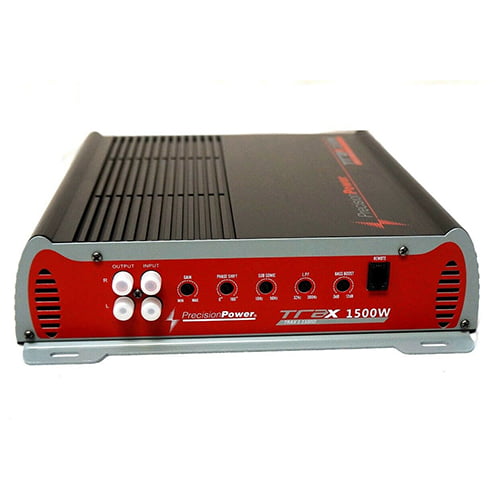

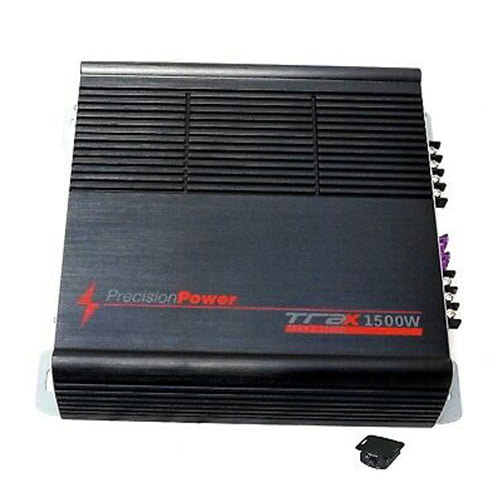

Precision Power Trax Series TRAX1.1500D

• RMS Power Rating:
• • 4 ohms: 500 watts x 1 chan.
• • 2 ohms: 750 watts x 1 chan.
• • 1 ohm: ————N/A————
• • Total power output: 1500 watts
• • Pulse Width Modulated MOSFET power supply
• • Wired remote bass level control included
• • LED power (green) and protect (red) indicators
• • Soft start turn-on
• • Mono channel operation
• • Preamp RCA outputs to daisy chain multiple amps
• • 3-way protection circuitry (thermal, overload, and speaker short protection)
• • Dual speaker terminals simplify the hookup of multiple speakers
• • Heavy duty aluminum alloy heat-sink
• • Input sensitivity: 200mV – 6V
• • Variable low-pass filter: 32 – 300Hz
• • Subsonic filter: 10 – 50Hz
• • Variable Bass Boost: 0 to +12 dB bass boost
• • Fuse Rating: 35A x 2
• • Dimensions: 9.75″W x 15″L x 2.5″H
