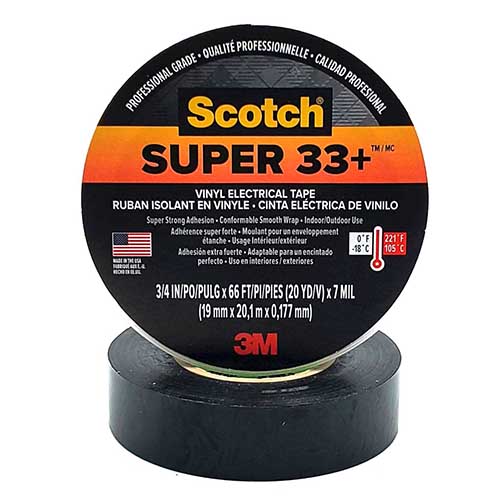

SUPER33 | Electrical Tape – Carrady Imports Limited

• RELIABLE PERFORMANCE: Delivers dependable insulation for low to high-voltage wires and cables up to 600V
• ENDURES THE ELEMENTS: Resists various weather conditions, making it a reliable solution for long-lasting performance
• MULTI-PURPOSE: Excels in solid dielectric cable insulation, synthetic and rubber cable splicing, cable harnessing, and more
• ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
• HIGH CONFORMABILITY: Securely holds on irregular shapes to create a secure seal
• TEMPERATURE-RESISTANT: Performs within temperatures from 0 °F to 221 °F (-18 °C to 105 °C)
• SPECIFICATIONS: Meets the standard for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified,
compliant with IEC 60454-3-1-7/F-PVCP/90, and RoHS, and is flame retardant, sunlight, cold resistant per (UL510) standards

Typical Properties

Adhesive Type	Rubber
Applications	Electrical Maintenance, Insulation
Backing (Carrier) Material	PVC, Vinyl
Brands	Scotch®
Flame Retardant	Yes
Insulation Resistance	> 10^12 ohms
Product Colour	Black
Shelf Life	5 yr
Specifications Met	CSA Certified, UL Listed
Substrate	Rubber
Tape Grade	Professional
UV Resistant	Yes
Voltage Rating	600 V

Core Size (Imperial)	1 in
Core Size (metric)	25.4 mm
Maximum Operating Temperature (Celsius)	105 °C
Maximum Operating Temperature (Fahrenheit)	221 °F
Minimum Operating Temperature (Celsius)	-18 °C
Minimum Operating Temperature (Fahrenheit)	0 °F
Overall Length (Imperial)	20 ft, 36 yd, 66 ft, 108 ft
Overall Length (Metric)	6 m, 20 m, 32.9 m, 32.918 m
Overall Width (Imperial)	0.5 in, 0.75 in, 1 in, 1.5 in, 49 in
Overall Width (Metric)	12.7 mm, 19 mm, 19.05 mm, 25.4 mm, 38 mm, 1224 mm
Total Tape Thickness without Liner (Imperial)	7 Milli-inch (mil)
Total Tape Thickness without Liner (metric)	0.178 mm
