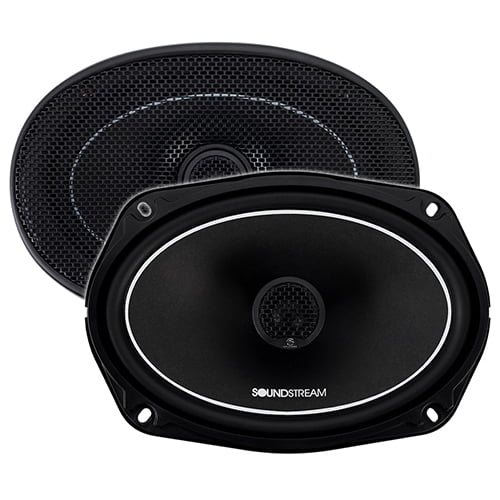

Premium Full-Range Speakers
- • Model / Specifications RS.69
- • Size & Configurations – 6 x 9
- • Impedance 4-Ohm (4Ω)
- • RMS / Max Power (Watts) – 80W/160W
- • Frequency Response – 50Hz-20kHz
- • Efficiency (1w/1m dB) – 88.9dB
- • Tweeter Size – .75″ (19mm)
- • Voice Coil Diameter – 1″ (25mm)
- • Woofer Mounting Depth – 3.00″ (78mm)
Mica Reinforced Pulp Cone
Everyone agrees paper sounds better. Taking your listening experience to the net level, Reserve speakers used reinforced material with mica and crystalline additive. The sound is significantly improved when using these materials, increasing dimension, stiffness, and rigidity strength.
Premium Metals Voice Coil
Reserve coaxial speakers use an oxygen-free copper voice coil, wound on an aluminum former. When designing an efficient door speaker, aluminum and copper are ideal and help dissipate heat easiest.
Textile Soft Dome Tweeter
The fun doesn’t stop, the woven poly-nylon synthetic material is worth talking about for the top-mounted tweeters. Kapton® former, utilized for its optimum mass to strength ratio & thermal dissipation properties. 6dB highpass crossover blocks midrange and bass frequencies, preventing unwanted distortion.
