PSW.124 SHALLOW WOOFER

Login for Pricing

SKU: PSW.124 Category: Tags: , ,

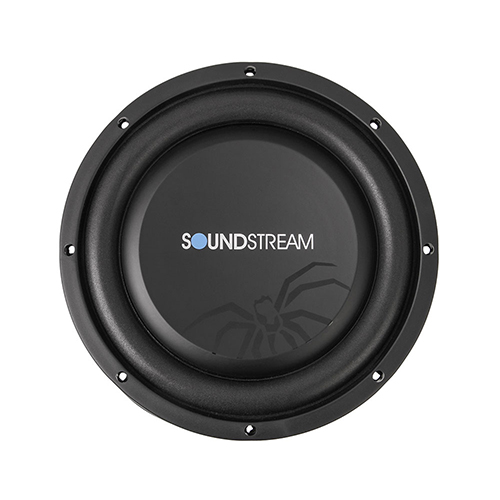

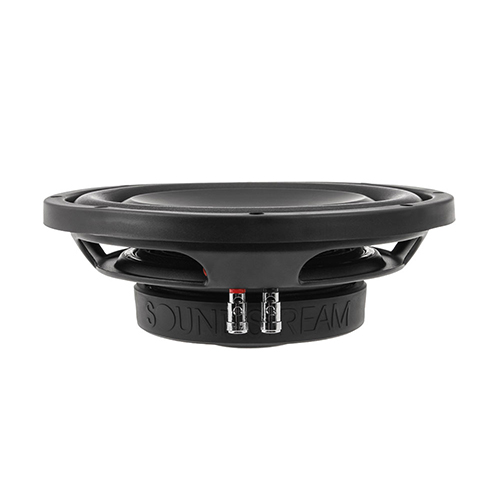

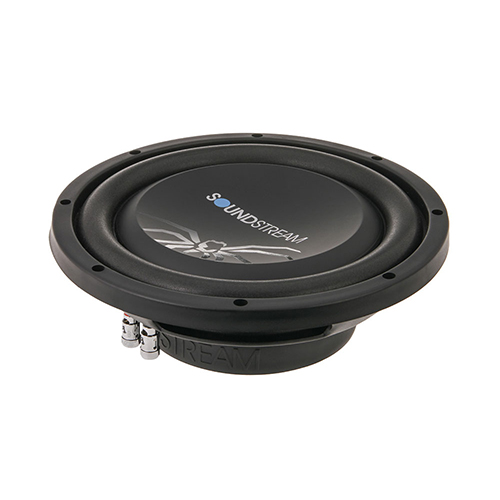

12″ Picasso Shallow Series Woofer

Single 4-Ohm Voice Coil Configuration

Picasso Shallow Subwoofers combine performance and value. These shallow subwoofers accomplish their best sound in small sealed enclosures, with minimal power requirements, thanks to efficiencies in the cone and suspension design.
If you are doing a system in a #Truck or #Powersports vehicle and need bass where its least expected or probable, fit our Picasso Shallows! The beauty in subwoofer technology is woofers can be smaller and engineered to give you bass opportunities whereas you couldn’t before.
Features: Pressed Spruce Pulp Cone with Polypropylene Coating, Polyether Foam Surround, Formed Steel Frame, all while being UV & Chemical Coated Protection.
Specifications  PSW.124
Max Power 600 Watts
RMS Power 300 Watts
Efficiency (1w/1m) 84.0
Voice Coil Configuration 2″ SVC 4Ω
Mounting Depth 3.50″
Optimum Sealed ft3 1.00″
Optimum Ported ft3 N/A

Thiele/Small Parameters

Imp. (Ohm) Single 4
Re 3.20
Fs (Hz) 32.60
Qes .954
Qms 6.728
Qts .836
Le (mH) 1.0274
Diam 12
Vas (L) 1.58
BL 11.74
Mms (g) 200.67
Sen (db) 84.0
RMS 300w
Mounting Depth 3.50″
Recommended Enclosures
Sealed Opt 1.00″ ft
Ported Opt N/A
Port WxL N/A
F3 (Hz) N/A
