Rubicon Water-Resistant 5Ch Amplifier

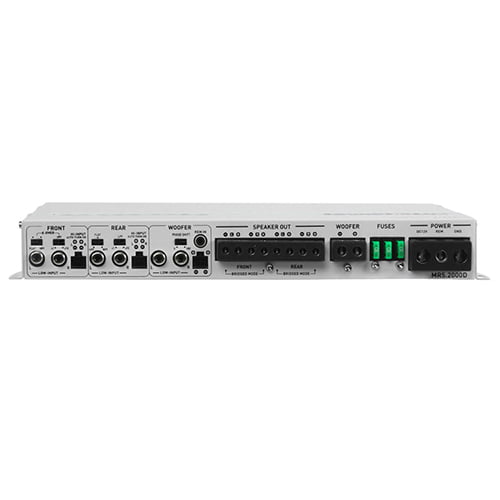

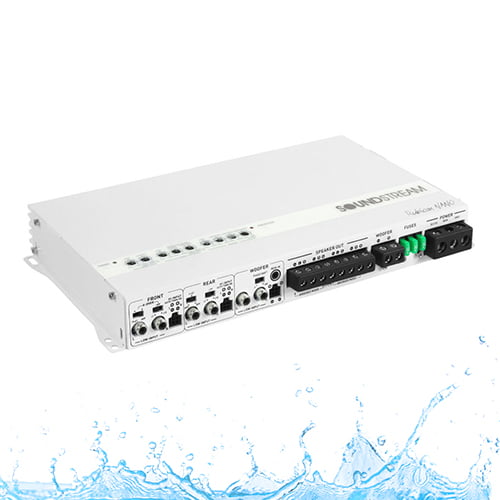

We’ve adopted the most optimum Class D performance, reliability, and smaller footprint platform for the Rubicon Nano series amplifiers and present to you Rubicon Nano. At first glance, you’ll notice this amplifier’s color; that’s the coat and finish to help this marinized model work for Marine or Powersports applications. Rubicon Nano’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis for an easier, more attractive install. All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. You might not notice embellishments to the circuit board, including increased power supply & output stage components & Monoblock bridging capability.
| SPECIFICATIONS | MR5.2000D |
|---|---|
| Max Power | 2,000 Watts |
| RMS Power @ 4Ω | 75W x 4 + 300W |
| RMS Power @ 2Ω | 100W x 4 + 500W |
| RMS Bridged @ 4Ω | 200W x 2 + 500W(2Ω) |
| Remote Gain Control | Included |
| Low Pass Filter | 50Hz-500Hz / (x10) 500Hz-5KHz |
| High Pass Filter | 50Hz-500Hz / (x10) 500Hz-5KHz |
| Bass Boost | 0-18dB (Ch 5) |
| Bass Boost Frequency | 45Hz (Ch 5) |
| Subsonic Filter | 20Hz-50Hz (Ch 5) |
| Frequency Response | 10Hz-50KHz (Ch 1-4) / 10Hz-150Hz. (Ch 5) |
| S/N | 104dB |
| Input Sensitivity | 200Mv-6V |
| THD | <0.05% |
| Operation Voltage | 9V-16V DC |
| Fuse Rating | 30A x 3 |
| Dimensions | 12″ L x 8.25″W x 2.75″H |
