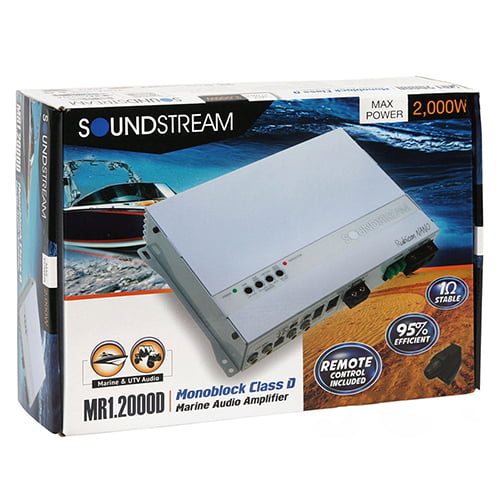

MR1.2000D MARINE AMPLIFIER

Login for Pricing

SKU: MR1.2000D Categories: , Tags: , ,

Rubicon Conformal Coated Series

Water-Resistant Subwoofer Amplifier

For the Rubicon Nano series amplifiers, we’ve adopted the most optimum Class D performance, reliability, and smaller footprint platform and present to you Rubicon Nano. At first glance, you’ll notice this amplifier’s color, that’s the coat and finish to help this marinized model work for Marine or Powersports applications. Rubicon Nano’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis, for an easier, more attractive install. All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. What you might not notice are embellishments to the circuit board, including increased power supply & output stage components, & Monoblock bridging capability.

SPECIFICATIONS MR1.2000D
Max Power 2,000 Watts
RMS Power @ 4Ω 400W x 1
RMS Power @ 2Ω 600W x 1
RMS Power @ 1Ω 1,000W x 1
Remote Gain Control Included
Low Pass Filter 50Hz-500Hz
High Pass Filter N/A
Bass Boost 0-12dB
Bass Boost Frequency 45Hz
Subsonic Filter 20Hz-50Hz
Frequency Response 20Hz-22KHz
S/N 104dB
Input Sensitivity 200Mv-6V
THD <0.1%
Operation Voltage 9V-16V DC
Fuse Rating 30A x 4
Dimensions
(8.25″W x 2.75″H)
10″ L
