Product Line - Box Buddy
MODEL: MR-31 / MR-421 / MR-8

 DESCRIPTION

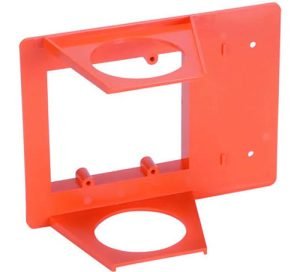

Box Buddy® low voltage mounting rings are designed for positioning low voltage devices next to 110 VAC electrical boxes with standard NEC spacing so that the combined 110 and low voltage device(s) may be covered with one multi-gang coverplate for an elegant appearance. The Box Buddy® uses a patent pending pull-off alignment tool that makes combined installation and alignment of 110 VAC and low voltage devices simple and quick. Box Buddy® low voltage mounting rings feature conduit flanges off-set by 5/8″ which enable unobtrusive use of conduit connectors.
FEATURES
 MR-31: 3 Gang 1″ conduit openings
MR-421: 4 Gang 1″ & 2″ conduit openings
The MR-8:  mud ring is an 8-gang, low voltage mounting bracket

that is designed for new construction.  It features six 1″ and four 2″

mounting holes for PVC or “Smurf” conduit.  The flanges that have two

mounting holes are off-set, so that fittings do not interfere with

low-voltage devices.

 Made from ABS flame retardant plastic, UL 94V-0 compliant
Box Buddy Mounting Ring - MR-31 - MR-32
 MR-31 DIMENSIONS
Dimensions: 8-7/8″ W x 5-1/2″ H x 3-5/8″ D, (225.4W x 140H x 92D)mm
Cut Out: 5-7/8″ W x 3-3/4″ H
Box Buddy Mounting Ring - MR-421
MR-421 DIMENSIONS
Dimensions: 10-3/4″ W x 5-1/2″ H x 3-5/8″ D, (273W x 140H x 92D)mm
Cut Out: 7-5/8″ W x 3-11/16″ H
Box Buddy Mounting Ring - MR-8
MR-8 DIMENSIONS
Dimensions: 17-1/2″ W x 5-1/2″ H x 3-5/8″ D, (444.5W x 140H x 92D)mm
Cut Out: 14-3/4″ W x 3-3/4″ H
DOWNLOADS

Gang

3, 4, 8
