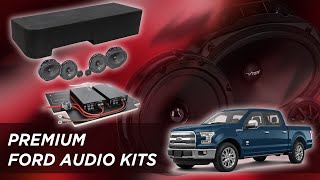

Metra has collaborated with VIBE Audio to create this state-of-the-art plug-n-play audio system, tailored to fit and perfectly enhance the amplified 2015-2017 and the non-amplified 2015-2024 Ford F-150 SuperCrew. Everything needed to install a premium aftermarket audio system is conveniently included in one package: premium amplifiers, a total of six assorted speakers for the front and rear of the vehicle, and a 10″ subwoofer in a ported enclosure, paired with an assortment of Metra products that make installation easy. This assortment of Metra products includes vehicle-specific plug-n-play integration harnessing, speaker adapters, amp brackets, and more. Engineered for seamless integration and exceptional sound performance, this kit is designed to enhance your audio experience with crystal-clear highs, robust mids, and deep bass. This comprehensive kit ensures every component works harmoniously to deliver unparalleled sound quality and ease of installation.

Estimated installation time is 6 to 8 hours with 1 experienced technician

Check out our detailed instructions for this install here: Installation Instructions

Features:

• • All-in-one premium vehicle-specific audio kit
• • Designed for amplified (2015-2017) and non-amplified (2015-2024) vehicles
• • 1-year warranty

Plug-n-play audio system includes:

• • Pair 400-watt 4-channel 100×4 amplifiers
• • Pair 1” front dash tweeters
• • Pair 6″ x 9” front door speakers
• • Pair 6.5” rear door speakers
• • 10” subwoofer with down-firing ported sub enclosure
• • Axxess DSP with downloadable vehicle-specific tuning
• • T-Spec RCA cables (6-Ch & 2-Ch)
• • Vehicle-specific amp mounting rack
• • Detailed step-by-step instructions

PB100.4M-V0 Amplifiers

• • Max power: 960W
• • Power output @ 2 ohms: 120W x 4
• • Power output @ 4 ohms: 100W x 4
• • Power output @ 4 ohms bridged: 240W x 2
• • System delivers up to 1920W maximum power
• • Dimensions: 1.9” H x 9.1” W x 5.3” D (47mm x 230mm x 134mm)
• • Class D

SLICK-V4 1″ Front Dash Tweeters

• • 1” speaker size
• • Peak: 150W RMS, 50W
• • Sensitivity: 94dB
• • Frequency response: 1.5kHz – 25kHz
• • Impedance: 4 ohms
• • Metra tweeter dash harness (non-amplified)
• • Metra 72-5603 speaker harness (amplified)

CVEN69MW-V4 6” x 9” Front Door Speakers

• • 6” x 9” speaker size
• • Peak: 260W RMS, 130W
• • Sensitivity: 91dB
• • Frequency response: 40Hz – 20kHz
• • Impedance: 4 ohms
• • Metra 82-5606 door speaker adapter plates
• • Metra 72-5602 door speaker harnesses
• • IBSBF69: 2-piece 6″ x 9″ speaker baffle kit

OPTI6-V4 6.5” Rear Door Speakers

• • 6.5” speaker size
• • Peak: 270W RMS, 90W
• • Sensitivity: 94dB
• • Frequency response: 55Hz – 20KkHz
• • Impedance: 4 ohms
• • Metra 82-5605 door speaker adapter plates
• • Metra 72-5602 door speaker harnesses
• • IBSBF65: 2-piece 6.5″ speaker baffle kit

FD-150-10 10″ Subwoofer & Ported Enclosure

• • 10” speaker size
• • Peak: 900W RMS, 300W
• • Sensitivity: 85dB
• • Frequency response: 30Hz – 1KkHz
• • Impedance: dual 2 ohms

Metra Amplifier Installation Kit

• • 18.5’ 4GA OFC power wire
• • 21’ 8GA OFC ground wire
• • 12′ 12GA OFC speaker wire
• • T-Spec VMANL water-tight fuse holder with 100A MANL fuse
• • Distribution block
• • Mounting hardware

Metra Vehicle-specific Amp Mounting Rack

• • Vehicle-specific design
• • CNC machine-cut with pre-drilled holes
• • Designed to mount to OE bolt locations for easy installation behind the rear seat

Refer to our Vehicle Fit Guide for up-to-date vehicle-specific applications.
