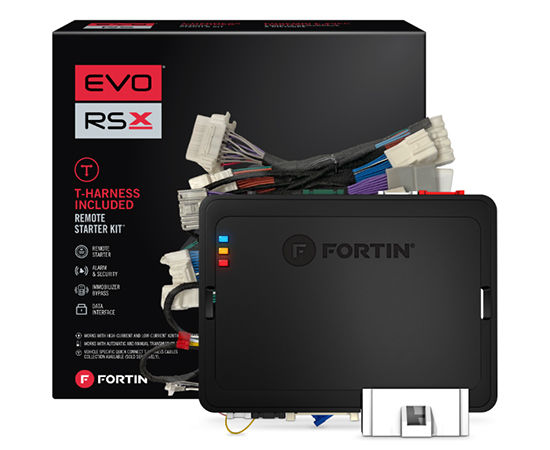

Module & T-Harness combo for select Mazda vehicles. The EVO-X-MAZ6 is the ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, door lock, alarm & remote start interface for select vehicles.
It raises the standard of hassle-free installation convenience to a whole new level.
Included:
- • 1x EVO-X-ONE Control Module [1] [2]
- • 1x THAR-X-MAZ6 Harness
- • 1x TB-X [3]
- • R-LINK2 cradle required to program the TBX (works in conjunction with FLASHLINK4)
- • (R-LINK2 and FLASHLINK4 sold separately)
Product Specifications
• 5 x High power Onboard relay.
• 3 x CAN-Bus controllers.
• 3 x General purpose controllers (J1850, LIN, Class 2, encrypted key etc.).
• 1 x On-board relay (DPDT).
• 1 x Analog controller 0-12VDC @ 20mV steps (Passlock, Parking lights, MUX).
• 10 x Data I/O controllers.
• 1 x Dual zone shock sensor input.
• 2 x Datalink RS232 ports.[4]
• 3 x On-board LEDs for simplified programming and diagnostics.
• 1 x Harness part bag.
• 2 x 2-way datalink port for data-to-data (RS-232) communication with compatible external devices such as smartphones & GPS
telematic units.[4]
• Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.
• 1 x TB-X.
- • [1]A firmware update is required
- • [2]Updated firmware and installation guides are posted on a regular basis. We recommend that you update this module to the latest
- firmware and download the latest installation guide(s) prior to the installation of this product.
- • [3]Refer to vehicle compatability page. Some vehicles may still require a key for remote starter installation.
- • [4]Using the 2-way datalink port with an equipped telematic unit greatly increases range and user integration.
