Description

• • U/UTP, 23AWG solid bare copper, CAT.6, CMP
• • With rip cord
• • High performance of transmission.
• • High quality of safety property.
• • High quality of safety property.
• • Reelex Ⅱ carton and easy to pull out.
• • Carton with one layer corrugated design providing sufficient strength and saving packaging space.

Application

• • Structure cabling for horizontal and building backbone cable.
• • Transmission of digital and analogue for data, video and audio applications.
• • IEEE 802.3ab 1000BASE-T, 1000BASE-TX and legacy speeds.
• • CDDI / ATM / Token Ring
• • IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)

Applicable Standard

Electrical Transmission

• • ANSI/TIA-568-C.2 (2009)
• • ISO/IEC 11801 (Edition 2.2)
• • IEC 61156-5 (Edition 2.1)

Flame Test

• • NFPA 262 (CMP)

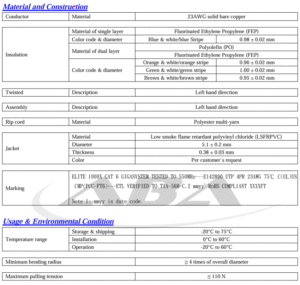

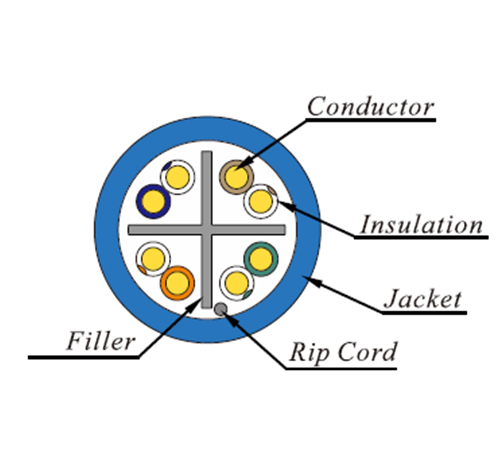

Material and Construction

• • UL 444
• • CSA 22.2 NO.214
• • EU Directive 2011/65/EC (RoHS2)
• • EU Directive 2006/95/EC (LVD)
• • CE compliance date: 2010.01.01
