Quick Overview

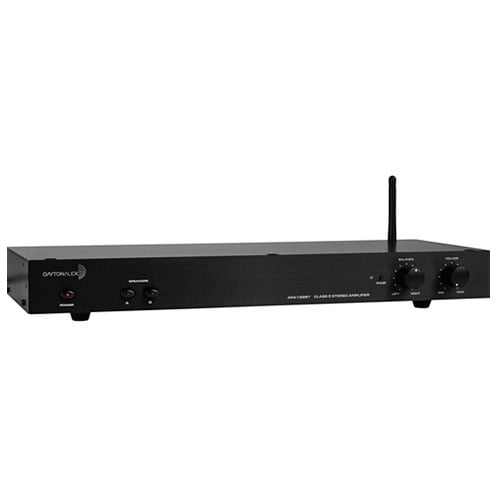

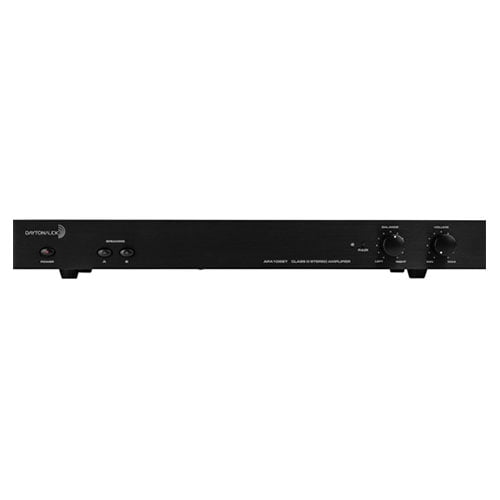

Connect with the Dayton Audio APA102BT amplifier and enjoy the convenience of Bluetooth, auto-on, and auto-source switching technology that makes playing your favorite music a breeze. Use this affordable, versatile amp when more power is needed in a multi-zone system, or in a powerful, audiophile-grade stereo hi-fi setup.
Product Highlights
- • Bluetooth 4.2 with aptX technology for wireless Hi-Fi listening
- • Dual stereo RCA line level inputs switch sources automatically
- • Convenient signal sensing power on and trigger modes save power when not in use
- • A/B speaker selector simplifies connectivity
- • 5-way binding posts on both sets of L/R speaker outputs
Product Description

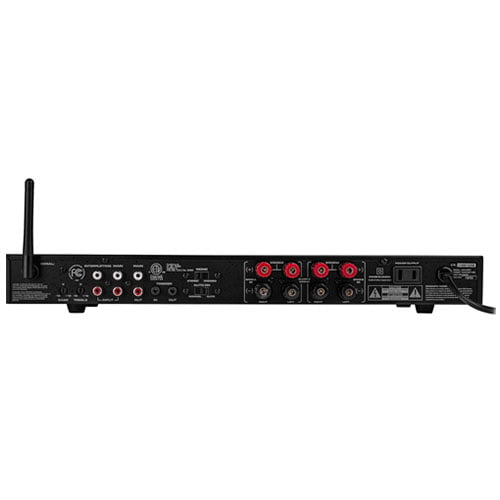

The Dayton Audio APA102BT high fidelity power amplifier switches sources and powers on (in auto-on mode) automatically when a source signal is detected. Bluetooth 4.2 with aptX, two line input sources, two-channels, and Class D topology make Dayton Audios APA102BT amplifier the heavyweight in its class. The APA102BT features two pairs of RCA line level inputs and a loop-out from the second source to feed additional zones, receivers, or other devices. Use the APA102BT for additional power when connected to a multi-zone audio system, or by itself to power a stereo speaker system.The APA102BT is rated at 80 watts RMS per channel into 4 ohms, and 60 watts RMS per channel into 8 ohms. In bridged mono mode, both amplifier channels are combined for high-power monaural output. The amplifier is rated at 160 watts RMS into a single 8 ohm load when bridged. Each amplifier output channel incorporates robust protection circuitry for reliability and safety. Rack ears are included.
Specifications: • Output power: 2 x 60 watts RMS into 8 ohms, 2 x 80 watts RMS into 4 ohms, 1 x 160 watts RMS into 8 ohms (minimum impedance) bridged mono • Bluetooth version: 4.2 with aptX • Total harmonic distortion: <1.0% @ 1 kHz • Signal to noise ratio: 88 dB, A-weighted • Frequency response: 10-30,000 Hz • Input sensitivity: 600 mV • Power: 120 VAC, 60 Hz, 200 watt maximum • Amplifier chip: TDA8950TH • Dimensions: 16.9″ W x 7.65″ D x 2.15″ H.
Product Details
Model Number | APA102BT |
Color | Black |
Unit of Measure | Each |
Warranty – Parts | 5 Years |
Warranty – Labor | 5 Years |
Product Shipping Weight (lbs.) | 6.2 |
Product Height | 2.15″ |
Product Width | 16.9″ |
Product Length | — |
Product Depth | 7.65″ |
Amplifier Type | Power Amplifiers |
Power Output | 2 x 60 watts RMS into 8 ohms80 watts RMS into 4 ohms |
Power Output (RMS @ 70V) Range | — |
Output Channels | 2 |
Output Connectors | 277477 |
Output Types | 285286 |
Inputs | 2 |
Input Connectors | 299 |
Input Impedance | — |
Signal-to-Noise Ratio | 88 dBA-weighted |
THD @ Rated Power | <1.0% @ 1 kHz |
Parametric EQ | — |
Phase Adjustment | — |
Low-pass Crossover | — |
Low Pass Adjustment | — |
Dynamic Range | — |
Frequency Response | 10-30000 Hz |
Efficiency | — |
Gain | — |
Bass Boost | — |
Voltage Requirement | 120 VAC60 Hz |
Auto-on Sensitivity | Yes |
Stand-by Power Rating | — |
Special Features | Bluetooth version: 4.2 with aptX |
