Amplifier Streamer WiFi DLNA AirPlay Bluetooth 5.0
iEast offers with the AMP80 a Class D amplifier and network player combo that is efficient, powerful and versatile. Its amplifier stage based on a TDA7498E chip allows it to develop a comfortable power of 2x80W under 4Ω or 2x50W under 8Ω. Its network section it embeds both a Bluetooth 5.0 receiver and a WiFi receiver, allowing very easy access to your audio files, whether they are stored on a smartphone, a computer or a NAS. The AMP80 supports DLNA/UPnP and Airplay streaming protocols, as well as Spotify Connect and QPlay. It also supports many of the major streaming services, such as Deezer, Tidal, Spotify, Amazon Music, Qobuz, Napster and web radio via TuneIn. In addition to its network capabilities, the AMP80 also provides an auxiliary input on 3.5mm jack and a digital coaxial input. On the output side, there are speaker terminals as well as a subwoofer output allowing the integration of a complete 2.1 system.
- • All-In-One Solution: The iEAST AMP80 is a two channel amplifier with Wi-Fi streaming capability.
- Can be run wirelessly through a wifi connection with iOS and Android devices, and with a WLAN
- connection on Windows and Mac.
- • Compatibility: The AMP80, like the other iEAST Wi-Fi products, is iOS, Android and
- PC compatible. The AMP80 supports DLNA/UPnP and Airplay streaming protocols, as well
- as Spotify Connect and QPlay.
- It also supports many of the major streaming services, such as Deezer, Tidal, Spotify, Amazon
- Music, Qobuz, Napster and web radio via TuneIn.
- Specifications
Product type Amplifier
StreamerAmplification type Class D Amplification chip TDA7498E Output power 2x 80W @ 4Ω, 1kHz, 1% THD+N
2x 50W @ 8Ω, 1kHz, 1% THD+NInput sensitivity ~700mV Max input voltage 1V SNR 90dB @ THD+N < 1%, 1kHz, gain = 26dB THD+N < 0.1% @ 1kHz Connectivity WiFi IEE802.11 b/g/n 2.4GHz
Bluetooth 5.0Inputs WiFi
Bluetooth
1x Ethernet RJ45 10/100M
1x Jack 3.5mm

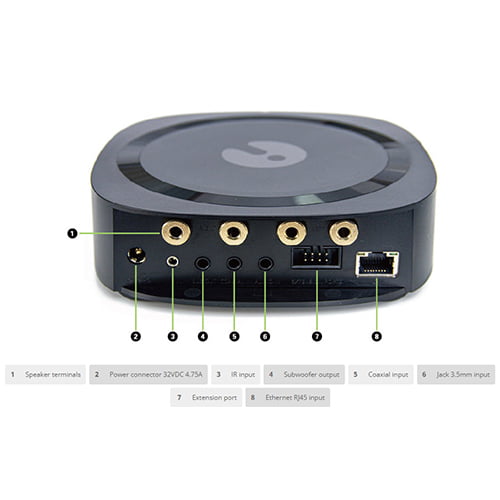

1x CoaxialOutputs Speaker terminals
1x Subwoofer outputSupported file formats APE, FLAC, MP3, WAV, AAC, AAC+, WMA, ALAC, AIFF Supported transmition protocols DLNA, AirPlay, Spotify Connect, QPlay Supported Bluetooth codecs SBC Supported sampling rates PCM up to 24bit 192kHz Smart Home control TCP/IP
Package Contents
- • 1x iEast AMP80
- • 1x Power adapter
- • 1x Remote control
- • 1x IR Cable
