The HDMI 2.0 Extender Kit, 50m (Model: 500408) allows extend a high-definition video/audio signals and one-way IR commands up to 164ft/50m between the transmitter and receiver over a single Cat5e/6 cable. This extender supports up to 4K/60Hz 4:4:4 video resolution, 18Gbps bandwidth, HDCP 2.2., HDMI Loop-out on the Transmitter, and one-way IR pass-through enabling source control.

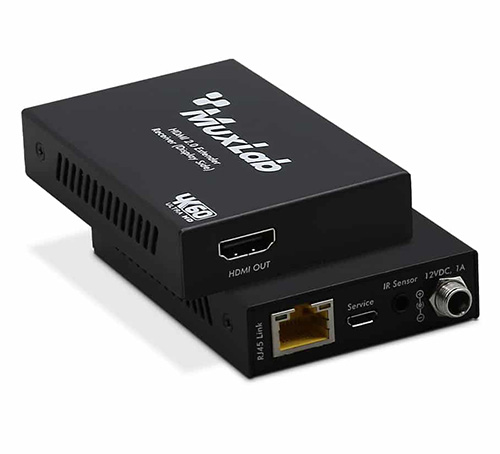

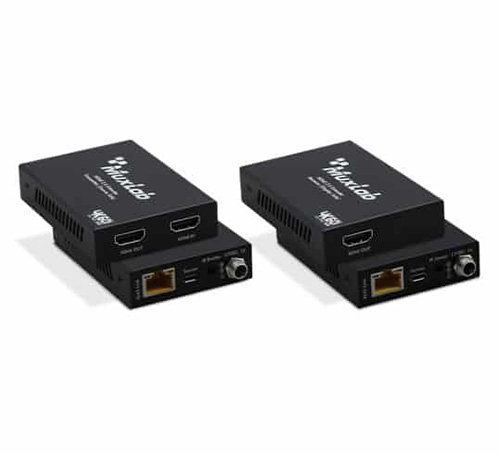

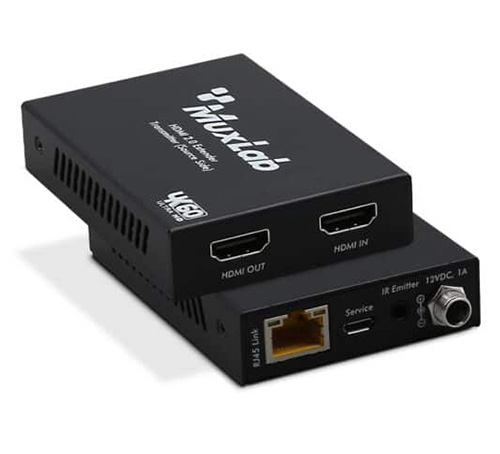

The extender includes one Transmitter unit and Receiver unit. The Transmitter unit is responsible for capturing HDMI input signal and carries the signal via one Cat5e/6 cable, and emitting IR control signals. The Receiver unit is responsible for receiving the HDMI signal and capturing IR control signals.
Applications:
- • Commercial AV Systems
- • Residential AV Systems
- • Collaborative PC Systems
- • Digital Signage
- • Educational Institutions
- • Boardroom Systems
Features:
- • HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- • Supports 18Gbps bandwidth
- • Supports input and output video resolution up to 4K/60Hz 4:4:4, extends distance up to 164ft /50m Supports one HDMI loop output
- • Supports one-way IR pass-through
- • Supports HDR function
- • Supports PoC (Power over Cable) function, it means that either transmitter or receiver is powered supply by 12VDC/1A power adapter, the other doesn’t need
- power supply
- • Supports automatic copy EDID function
- • Compact design for easy and flexible installation
| Weight | 1.1 lbs (0.500 kg) |
|---|---|
| Dimensions | 1.18 H x 1.77 W in (4.50 × 3.00 cm) |
